Product Overview

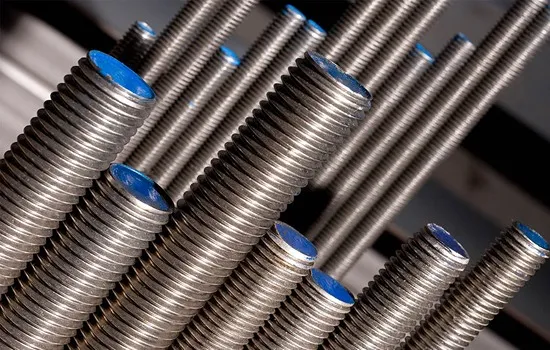

Threaded Rods, commonly referred to as Stud Rods, All-Thread Rods, or Thread Bars, are essential fastening components used to connect, secure, suspend, and reinforce structures and mechanical assemblies. Unlike standard bolts, threaded rods feature threading along their entire length, allowing nuts and washers to be installed at any position.
These versatile fasteners are extensively used in steel structures, concrete anchoring systems, HVAC installations, piping supports, marine structures, petrochemical plants, and heavy engineering projects where strength and reliability are critical.
At Moksh Tubes & Fittings LLP, we offer a complete range of Threaded Rods manufactured from corrosion-resistant and high-strength materials suitable for harsh industrial environments, offshore installations, and structural applications.
Download Threaded Rods Datasheet
Get the complete Threaded Rods datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications
| Specification | Details |
|---|---|
| Product | Threaded Rods / Stud Rods |
| Diameter Range | M6 to M64 |
| Imperial Sizes | 1/4" to 4" |
| Length | 1m, 2m, 3m & Custom Lengths |
| Thread Type | UNC, UNF, Metric Coarse, Metric Fine |
| Standards | DIN 975, DIN 976, ASTM A193, ASTM A307, ISO 898-1 |
| Materials | Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Nickel Alloy, Titanium, Brass & Copper |
| Finishes | Plain, Zinc Plated, Hot Dip Galvanized, PTFE Coated, Passivated |
| Certification | EN 10204 3.1, MTC Available |
Threaded Rods Weight Chart (Metric – ISO Coarse Pitch)
| Nominal Size (M) | Pitch (mm) | Tensile Stress Area (mm²) | Black Steel (kg/m) | Zinc Plated (kg/m) | Hot Dip Galv (kg/m) | SS 304 (kg/m) | SS 316 (kg/m) |
|---|---|---|---|---|---|---|---|
| M6 | 1.00 | 20.1 | 0.222 | 0.222 | 0.223 | 0.224 | 0.224 |
| M8 | 1.25 | 36.6 | 0.373 | 0.374 | 0.375 | 0.376 | 0.376 |
| M10 | 1.50 | 58.0 | 0.579 | 0.580 | 0.582 | 0.584 | 0.584 |
| M12 | 1.75 | 84.3 | 0.821 | 0.823 | 0.826 | 0.829 | 0.829 |
| M14 | 2.00 | 115 | 1.12 | 1.13 | 1.14 | 1.15 | 1.15 |
| M16 | 2.00 | 157 | 1.58 | 1.59 | 1.60 | 1.62 | 1.62 |
| M18 | 2.50 | 192 | 2.00 | 2.02 | 2.04 | 2.06 | 2.06 |
| M20 | 2.50 | 245 | 2.47 | 2.49 | 2.51 | 2.53 | 2.53 |
| M22 | 2.50 | 303 | 3.04 | 3.06 | 3.09 | 3.12 | 3.12 |
| M24 | 3.00 | 353 | 3.77 | 3.80 | 3.83 | 3.86 | 3.86 |
| M27 | 3.00 | 459 | 4.90 | 4.93 | 4.97 | 5.01 | 5.01 |
| M30 | 3.50 | 561 | 6.40 | 6.44 | 6.48 | 6.53 | 6.53 |
| M33 | 3.50 | 694 | 7.98 | 8.02 | 8.07 | 8.12 | 8.12 |
| M36 | 4.00 | 817 | 9.29 | 9.34 | 9.39 | 9.44 | 9.44 |
| M39 | 4.00 | 976 | 11.0 | 11.1 | 11.2 | 11.3 | 11.3 |
| M42 | 4.50 | 1,134 | 13.4 | 13.5 | 13.6 | 13.7 | 13.7 |
| M45 | 4.50 | 1,303 | 15.5 | 15.6 | 15.7 | 15.9 | 15.9 |
| M48 | 5.00 | 1,470 | 17.7 | 17.8 | 18.0 | 18.2 | 18.2 |
| M52 | 5.00 | 1,676 | 20.9 | 21.0 | 21.2 | 21.4 | 21.4 |
| M56 | 5.50 | 1,962 | 24.8 | 25.0 | 25.2 | 25.4 | 25.4 |
| M60 | 5.50 | 2,216 | 28.6 | 28.8 | 29.0 | 29.3 | 29.3 |
| M64 | 6.00 | 2,561 | 33.6 | 33.8 | 34.0 | 34.3 | 34.3 |
Grades Available
We supply Threaded Rods in a wide range of grades:
Stainless Steel
304, 304L, 316, 316L, 310, 321
For corrosion resistance in
marine, food & pharma industries.
Carbon & Alloy Steel
ASTM A193 B7/B7M, A320 L7/L7M, ASTM A307
For structural
& high-strength use.
Duplex & Super Duplex
UNS S31803, S32205, S32750, S32760
For offshore &
chemical plants.
Nickel Alloys & Titanium
Inconel, Monel, Hastelloy, Titanium Grades 2 & 5
For
extreme heat & corrosive service.
Brass, Copper & Aluminum
C36000 Brass, C11000 Copper, Al 6061, 6082
For lightweight,
decorative & electrical purposes.
Types of Threaded Rods
Fully Threaded Rods (All Thread)
Threaded continuously from end to end, offering maximum adjustment flexibility.
Double-End Studs
Threaded at both ends with an unthreaded center section, commonly used in flange connections.
Tap-End Studs
Featuring one short-threaded end and one long-threaded end for equipment assembly applications.
Coarse Thread Rods
Suitable for construction and general engineering applications.
Fine Thread Rods
Used where vibration resistance and precise clamping force are required.
Custom Threaded Rods
Manufactured according to project specifications, including special thread forms, coatings, and lengths.
Applications & Uses
Construction & Infrastructure
Structural steel connections, concrete anchoring systems, building reinforcement, suspension systems.
Marine & Offshore
Dock structures, offshore platforms, shipbuilding projects, saltwater applications.
Oil & Gas Industry
Flange assemblies, pressure vessels, refineries, petrochemical facilities.
Industrial Machinery
Pumps, compressors, turbines, manufacturing equipment, machinery assembly.
Automotive & Aerospace
Engine components, suspension systems, aircraft structures.
Architectural Applications
Railings, decorative fittings, signage systems, furniture manufacturing.
Advantages of Threaded Rods
High tensile strength
Excellent load-bearing capability
Easy installation
Available in multiple materials
Corrosion-resistant options available
Cost-effective fastening solution
Easily cut to custom lengths
Suitable for high-temperature environments
Long service life
Mechanical Properties
Values are typical and may vary according to size and heat treatment.
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) |
|---|---|---|
| SS 304 | 515 | 205 |
| SS 316 | 515 | 205 |
| ASTM A193 B7 | 860 | 720 |
| ASTM A320 L7 | 860 | 720 |
| Duplex 2205 | 620 | 450 |
| Inconel 625 | 827 | 414 |
| Titanium Grade 2 | 345 | 275 |
Why Choose Moksh Tubes & Fittings LLP?
Extensive inventory availability
ISO-certified quality systems
Custom manufacturing capabilities
Competitive pricing
Worldwide export support
Fast dispatch schedules
Technical assistance for project requirements
Complete documentation and certification
Frequently Asked Questions (FAQ)
What are threaded rods used for?
Threaded rods are used for fastening, anchoring, suspension systems, structural reinforcement, machinery assembly, and industrial installations.
What is the standard size range?
Standard sizes range from M6 to M64 and from 1/4" to 4" in imperial dimensions.
Which threaded rod material offers the best corrosion resistance?
Stainless Steel 316, Duplex Stainless Steel, Titanium, and Nickel Alloy threaded rods provide excellent corrosion resistance.
Can threaded rods be supplied in custom lengths?
Yes. We supply threaded rods in standard and custom lengths according to project requirements.
Do you provide test certificates?
Yes. EN 10204 3.1 Mill Test Certificates and additional inspection reports are available.
