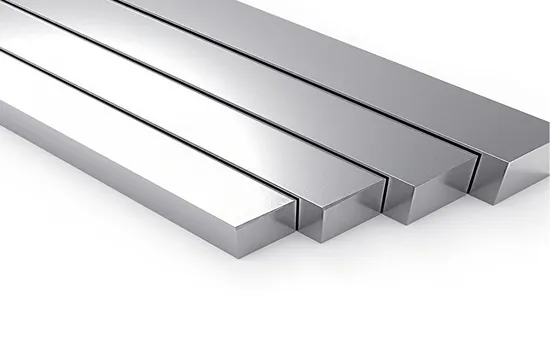

Square Bars
Square Bars are solid four sided metal bars used for a wide range of structural, machining, fabrication, and decorative applications. Known for their strength, versatility, and uniform shape, 10mm square bar weight, aluminium square bar, brass square bar, mild steel square bar, and stainless steel square bar are used in industries like construction, marine, automotive, aerospace, and heavy engineering.
Moksh Tubes & Fittings LLP, we supply high quality square bars in stainless steel square bar, ms square bar, times square bars, carbon steel, alloy steel, duplex & super duplex, nickel alloys, titanium, aluminium, brass square bar, and copper. All our square bars meet ASTM, ASME, DIN, EN, and JIS standards, ensuring precision, reliability, and performance for both industrial and decorative uses.
Specifications
| Category | Details |
|---|---|
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Duplex & Super Duplex, Nickel Alloys, Titanium, Aluminium Square Bar, Brass Square Bar, Copper |
| Grades | ASTM, ASME, DIN, EN, and JIS certified grades – available in all major alloys |
| Size Range | 6 mm x 6 mm to 150 mm x 150 mm (custom sizes up to 200 mm on request) – includes square bar sizes |
| Lengths | 3 meters to 6 meters (cut-to-length available) |
| Types | Hot Rolled Square Bars, Cold Drawn Square Bars, Forged Square Bars, Polished Square Bars |
| Finishes | Bright, Polished, Mill Finish, Shot Blasted, Pickled & Passivated |
| Standards | ASTM A276, A484, ASTM B160, EN 10059, DIN 1014 |
Charts
Weight Chart
| Size (mm) | Inches | Sectional Area (mm²) | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|---|
| 6 | 1/4 | 36 | 0.283 | 0.190 |
| 8 | 5/16 | 64 | 0.503 | 0.338 |
| 10 | 3/8 | 100 | 0.785 | 0.527 |
| 12 | 1/2 | 144 | 1.13 | 0.758 |
| 16 | 5/8 | 256 | 2.01 | 1.35 |
| 18 | 11/16 | 324 | 2.54 | 1.70 |
| 20 | 3/4 | 400 | 3.14 | 2.11 |
| 22 | 7/8 | 484 | 3.85 | 2.58 |
| 25 | 1 | 625 | 4.91 | 3.30 |
| 28 | 1-1/8 | 784 | 6.16 | 4.14 |
| 30 | 1-3/16 | 900 | 7.07 | 4.75 |
| 32 | 1-1/4 | 1024 | 8.04 | 5.40 |
| 36 | 1-7/16 | 1296 | 10.18 | 6.83 |
| 40 | 1-9/16 | 1600 | 12.56 | 8.43 |
| 45 | 1-3/4 | 2025 | 15.90 | 10.67 |
| 50 | 2 | 2500 | 19.63 | 13.19 |
| 55 | 2-3/16 | 3025 | 23.77 | 15.98 |
| 60 | 2-3/8 | 3600 | 28.26 | 18.99 |
| 65 | 2-1/2 | 4225 | 33.13 | 22.25 |
| 70 | 2-3/4 | 4900 | 38.48 | 25.82 |
| 75 | 3 | 5625 | 44.18 | 29.68 |
| 80 | 3-1/8 | 6400 | 50.24 | 33.71 |
| 90 | 3-1/2 | 8100 | 63.62 | 42.76 |
| 100 | 4 | 10000 | 78.50 | 52.73 |
| 110 | 4-3/8 | 12100 | 95.00 | 63.90 |
| 120 | 4-3/4 | 14400 | 113.10 | 76.00 |
| 125 | 5 | 15625 | 122.72 | 82.43 |
| 130 | 5-1/8 | 16900 | 132.70 | 89.10 |
| 140 | 5-1/2 | 19600 | 153.70 | 103.30 |
| 150 | 6 | 22500 | 176.71 | 118.70 |
| 160 | 6-1/4 | 25600 | 201.10 | 135.00 |
| 180 | 7-1/8 | 32400 | 254.50 | 170.90 |
| 200 | 8 | 40000 | 314.00 | 211.00 |
Grades Available
We offer Square Bars in a wide variety of grades:
| Material | Grades |
|---|---|
| Stainless Steel | 304, 304L, 316, 316L, 310, 321, 347 (Corrosion resistance & hygienic use) |
| Carbon Steel | ASTM A36, EN8, EN9, IS2062 (General structural & engineering applications – MS Square Bar) |
| Alloy Steel | EN19, EN24, EN31, 4140, 4130 (High-strength heavy-duty parts) |
| Duplex & Super Duplex | 2205, S32750, S32760 (Offshore, chemical & marine projects) |
| Nickel Alloys | Inconel, Monel, Hastelloy (High temperature & corrosive environments – Times Square Bars) |
| Titanium | Grades 2, 5 (Aerospace, desalination & critical industries) |
| Copper & Brass | C11000, C26000 (Decorative, electrical & marine applications – Brass Square Bar) |
| Aluminum | 6061, 6082, 7075 (Lightweight structural use – Aluminium Square Bar) |
NICKLE ALLOYS
STAINLESS STEEL
DUPLEX & SUPER
TITANIUM ALLOYS
RARE TO ALLOYS
CARBON ALLOYS
Applications
Square Bars are used in multiple industries for both functional and decorative purposes:
Construction & Infrastructure
- Structural supports, braces, and reinforcement bars in buildings, bridges & industrial projects.
- Used in grills, gates, frames, and base plates (square bar grill design, square bar gate design, modern square bar gate design, modern square bar window grill design photos).
Marine & Offshore
- Duplex and copper nickel square bars for ship fittings, marine furniture, and offshore platforms.
- Corrosion-resistant stainless steel square bar for seawater applications.
Oil, Gas & Petrochemical
- Machined into valve bodies, pump parts, and connectors.
- Alloy square bars for refinery, pipeline, and chemical plant applications.
Automotive & Aerospace
- Alloy & titanium square bars for chassis components, structural frames & tooling parts.
- Aluminium square bar for lightweight automotive and aerospace structures.
Decorative & Architectural
- Mirror polished stainless & brass square bar for luxury interiors, furniture, signage, and ornamental work.
