Product Overview

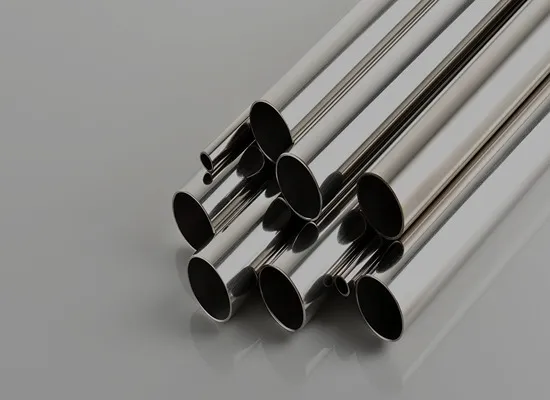

Introduction To Titanium Grade 5 / Ti-6Al-4V / UNS R56400
MOKSH TUBES & FITTINGS LLP proudly offers a complete range of Titanium Grade 5 products, including Pipes & Tubes, Pipe Fittings, Flanges, Fasteners, Sheets & Plates, Coils, Bars, Wires, Welding Rods, Mesh, Custom Machined Parts, and other specialty components tailored to critical applications. As a manufacturer, stockist, exporter, importer, and supplier, we are committed to delivering top-tier Titanium Grade 5 solutions worldwide.
Titanium Grade 5 also known as Ti-6Al-4V, is the most widely used titanium alloy, featuring 6% aluminum and 4% vanadium. This high-strength, lightweight alloy strikes an excellent balance between performance and processability. It boasts outstanding corrosion resistance, superior strength-to-weight ratio, and reliable performance at elevated temperatures—making it the material of choice in aerospace, medical, marine, and industrial sectors. Whether it's structural components or precision-engineered parts, Grade 5 is the trusted solution for demanding environments.
Chemical Composition
| Element | Composition (%) |
|---|---|
| Titanium | Balance |
| Aluminum | 5.5 – 6.75 |
| Vanadium | 3.5 – 4.5 |
| Iron | 0.40 max |
| Oxygen | 0.20 max |
| Carbon | 0.08 max |
| Nitrogen | 0.05 max |
| Hydrogen | 0.015 max |
| Other elements | 0.10 max |
Technical Composition
Physical Properties
| Property | Imperial | Metric |
|---|---|---|
| Density | 0.160 lb/in³ | 4.43 g/cm³ |
| Melting Point | 2,800 °F | 1,655 °C |
| Elastic Modulus | 16.5 x 10⁶ psi | 114 GPa |
| Thermal Conductivity | 6.7 Btu/h·ft·°F | 6.7 W/m·K |
| Electrical Resistivity | 1.72 x 10⁻⁶ ohm·in | 1.47 µΩ·m |
Mechanical Properties
| Property | Tubing (Annealed) | Tubing (Cold Drawn) | Bar (Annealed) | Plate (Annealed) | Sheet (Annealed) |
|---|---|---|---|---|---|
| Tensile Strength (ksi) | 130 | 145 | 138 | 135 | 140 |
| Tensile Strength (MPa) | 896 | 1000 | 952 | 931 | 965 |
| Yield Strength (0.2%) (ksi) | 120 | 129 | 125 | 122 | 128 |
| Yield Strength (MPa) | 827 | 889 | 862 | 841 | 883 |
| Elongation (%) | 14 | 10 | 10 | 4 | 8 |
Products in Titanium Grade 5
Titanium Grade 5 (UNS R56400 / Ti-6Al-4V) is recognized globally for its strength, corrosion resistance, and temperature tolerance. It is the go-to material for structural and pressure-containing applications across various high-performance industries. What sets Grade 5 apart is its capability to maintain high strength even after heat treatment or welding—ideal for aerospace components, marine hardware, and medical implants.
Titanium Grade 5 is manufactured in strict accordance with international norms and quality benchmarks:
Uses and Advantages
Exceptional strength-to-weight ratio
Excellent corrosion resistance, including in saltwater
Superior biocompatibility – safe for implants
High fatigue and crack resistance
Maintains strength up to 400°C
Ideal for welding, forging, and machining
Applications of Titanium Grade 5
Titanium Grade 5 is synonymous with performance. Its versatility and resilience make it a cornerstone material in critical applications:
Aerospace & Defense
From turbine blades and jet engine parts to structural airframe components
Medical Sector
Used in orthopedic implants, surgical instruments, dental devices, and prosthetics
Marine & Offshore Engineering
For ship structures, propulsion systems, desalination plants, and underwater equipment
Automotive & Motorsport
For valves, connecting rods, and performance parts in high-speed applications
Chemical Processing
Resistant to chlorides and acid attack—ideal for heat exchangers and reaction vessels
Power Generation
Used in condenser tubing, turbine blades, and components exposed to high temperature
WHY CHOOSE US?
FAQ's
What is Titanium Grade 5 (Ti-6Al-4V) and why is it widely used?
Titanium Grade 5, also known as Ti-6Al-4V, is a high strength titanium alloy containing 6% aluminum and 4% vanadium. It combines an exceptional strength-to-weight ratio with corrosion resistance and temperature tolerance, making it ideal for aerospace, medical, marine, and industrial applications. Its versatility and reliability have made it the most widely used titanium alloy for precision-engineered and structural components.
What types of Titanium Grade 5 products does MOKSH TUBES & FITTINGS LLP provide?
MOKSH TUBES & FITTINGS LLP offers a complete range of Titanium Grade 5 products, including seamless and welded pipes, various tubes, sheets, plates, coils, bars, wires, fasteners, flanges, welding rods, mesh, and custom machined components. All products comply with international quality standards and are designed for high performance and critical applications where strength and durability are essential.
What are the main advantages of Titanium Grade 5?
Titanium Grade 5 offers a superior strength-to-weight ratio, excellent corrosion resistance including in saltwater environments high fatigue and crack resistance, and biocompatibility suitable for medical implants. It retains its strength at elevated temperatures up to 400°C and can be welded, forged, and machined with precision, making it ideal for demanding industrial and aerospace applications.
Which industries benefit most from Titanium Grade 5 products?
Titanium Grade 5 is widely used in aerospace and defense for airframes and jet engine components, in medical sectors for implants and surgical instruments, in marine and offshore engineering for underwater equipment and ship structures, in automotive and motorsport for high performance parts, in chemical processing for corrosion resistant vessels, and in power generation for turbines and condenser components.
Why choose MOKSH TUBES & FITTINGS LLP for Titanium Grade 5 solutions?
With over a decade of expertise, MOKSH TUBES & FITTINGS LLP provides globally compliant Titanium Grade 5 products with in house processing, testing, and machining for full traceability. We ensure timely delivery, competitive pricing, and custom solutions tailored to your specifications, making us a trusted supplier for high performance industries worldwide.
