Product Overview

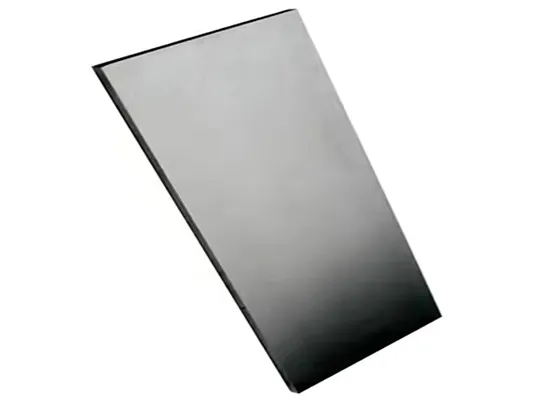

Introduction To Titanium Grade 7 NB / Ti-0.2Pd / UNS R52400
MOKSH TUBES & FITTINGS LLP is a leading manufacturer, supplier, exporter, importer, and stockist of a wide range of Titanium Grade 7 NB products including Pipes & Tubes, Pipe Fittings, Flanges, Fasteners, Sheets & Plates, Coils, Wires, Bars, Forgings, Custom Components, and other hard-to-find titanium alloy products tailored to your exact requirements.
Titanium Grade 7 NB (UNS R52400), also known as Ti-0.2Pd, is a corrosion-resistant, alpha-phase titanium alloy that offers the same mechanical properties as Grade 2, but with enhanced corrosion resistance due to the addition of palladium (0.12–0.25%). This makes it one of the most corrosion-resistant titanium grades available, especially in reducing and mildly oxidizing environments such as hydrochloric and sulfuric acid.
Renowned for its excellent weldability, ductility, and formability, Titanium Grade 7 NB is ideal for industries that operate in aggressive chemical environments and demand both longevity and performance.
Chemical Composition
| Element | Composition (%) |
|---|---|
| Titanium | Balance |
| Carbon | ≤ 0.08 |
| Palladium | 0.12 – 0.25 |
| Iron | ≤ 0.30 |
| Nitrogen | ≤ 0.03 |
| Hydrogen | ≤ 0.015 |
| Oxygen | ≤ 0.25 |
Technical Composition
Physical Properties
| Property | Imperial | Metric |
|---|---|---|
| Density | 0.163 lb/in³ | 4.51 g/cm³ |
| Melting Point | 3038 °F | 1670 °C |
| Elastic Modulus | 15 x 10⁶ psi | 103 GPa |
| Thermal Conductivity | 10.1 BTU/hr·ft·°F | 14.6 W/m·K |
| Electrical Resistivity | 27.1 µΩ·in | 68 µΩ·cm |
Mechanical Properties
| Property | Tubing (Annealed) | Tubing (Cold Drawn) | Bar (Annealed) | Plate (Annealed) | Sheet (Annealed) |
|---|---|---|---|---|---|
| Tensile Strength (ksi) | 70 | 90 | 75 | 71 | 75 |
| Tensile Strength (MPa) | 483 | 620 | 517 | 490 | 517 |
| Yield Strength (0.2%) (ksi) | 50 | 70 | 55 | 52 | 55 |
| Yield Strength (MPa) | 345 | 483 | 379 | 359 | 379 |
| Elongation (%) | 30 | 18 | 25 | 4 | 24 |
Products in Titanium Grade 7 NB
Titanium Grade 7 NB is favored across critical applications for its superior resistance to crevice corrosion, particularly in acidic, brine-rich, or chloride-containing environments. Its performance in environments with high levels of moisture and corrosive agents is exceptional, making it ideal for industries like chemical processing and desalination.
Titanium Grade 7 NB is produced and tested to meet international specifications:
Uses and Advantages
Outstanding corrosion resistance, especially in chloride, acidic, and brine environments
Excellent weldability with no post-weld heat treatment required
Low density and high strength-to-weight ratio
Superior resistance to crevice corrosion due to palladium addition
Excellent formability and machinability
Non-toxic and biocompatible for sensitive environments
Applications of Titanium Grade 5
Titanium Grade 7 NB reliability and corrosion resistance have made it a preferred alloy for industries operating in harsh or reactive environments. Some key applications include:
Chemical Processing Plants
Used in piping, tanks, valves, and heat exchangers handling aggressive chemicals and acids.
Desalination & Marine Systems
Ideal for brine handling systems, marine heat exchangers, and seawater filtration units.
Pulp and Paper Industry
Used in bleach tanks, digesters, and process piping exposed to chlorine compounds.
Power Generation
Employed in condenser tubes and feedwater systems of nuclear and thermal power plants.
Pharmaceutical & Food Industry
Safe for contact with consumables and resistant to cleaning chemicals and sanitizers.
Pollution Control Systems
Suitable for scrubbers, stack gas systems, and reactors in flue-gas desulfurization.
WHY CHOOSE US?
FAQ's
What is Titanium Grade 7 NB (Ti-0.2Pd) and why is it used?
Titanium Grade 7 NB, also known as Ti-0.2Pd (UNS R52400), is a corrosion resistant, alpha phase titanium alloy. It shares the mechanical properties of Grade 2 titanium but includes palladium (0.12–0.25%) for enhanced resistance against acids and chlorides. These characteristics make it ideal for chemical processing, desalination, marine, and other aggressive environments where long lasting performance is critical.
What types of Titanium Grade 7 NB products are offered by MOKSH TUBES & FITTINGS LLP?
MOKSH TUBES & FITTINGS LLP provides an extensive range of Grade 7 NB products, including seamless and welded pipes, tubes, sheets, plates, coils, bars, wires, fasteners, flanges, forgings, and custom fabricated components. All products are manufactured to international standards and are suitable for high performance applications in corrosion prone environments.
What are the key advantages of Titanium Grade 7 NB?
Titanium Grade 7 NB offers exceptional corrosion resistance, especially in acidic, chloride, and brine-rich environments. It features excellent weldability without post weld heat treatment, a high strength to weight ratio, biocompatibility, and superior machinability and formability. These properties make it ideal for industries that require durable performance in harsh chemical conditions.
Which industries benefit most from Titanium Grade 7 NB products?
Industries that benefit from Titanium Grade 7 NB include chemical processing for piping and tanks, desalination plants for brine handling systems, pulp and paper for bleach tanks and digesters, power generation for condenser and feedwater systems, pharmaceutical and food sectors for sanitary equipment, and pollution control systems for scrubbers and reactors exposed to corrosive gases.
Why choose MOKSH TUBES & FITTINGS LLP for Titanium Grade 7 NB solutions?
With decades of expertise, MOKSH TUBES & FITTINGS LLP delivers globally sourced, high quality Grade 7 NB products with full traceability and strict quality control. The company provides custom-fabricated components tailored to specific requirements, ensures timely delivery, and offers expert technical support, making it a trusted partner for industries operating in aggressive environments.
Contact Us
For product inquiries, technical support, or to request a quote, contac Moksh Tubes & Fittings LLP your reliable partner for Titanium Grade 7 NB products and solutions.
