Product Overview
Introduction To Hastelloy C-2000 / Alloy C-2000 / UNS N06200
MOKSH TUBES & FITTINGS LLP is a trusted manufacturer, exporter, importer, and stockist of high-performance HASTELLOY C-2000 (UNS N06200) products. Our offering includes Pipes & Tubes, Fittings, Flanges, Fasteners, Plates, Sheets, Bars, Coils, Wires, Welding Rods, and fully customized components. Designed to deliver exceptional resistance in the broadest range of corrosive environments, HASTELLOY C2000 combines outstanding oxidizing and reducing media performance.
HASTELLOY C2000is a nickel-chromium-molybdenum-copper alloy engineered to address the limitations of other corrosion-resistant materials. The addition of copper enhances resistance to sulfuric acid, while chromium increases protection against oxidizing agents. This alloy is highly adaptable, performing well across chemical processing, acid production, and environmental protection industries.
Chemical Composition
| Element | Composition (%) |
|---|---|
| Nickel | 59 (Balance) |
| Chromium | 22.0 – 24.0 |
| Molybdenum | 15.0 – 17.0 |
| Iron | 3.0 max |
| Cobalt | 2.5 max |
| Manganese | 0.50 max |
| Silicon | 0.08 max |
| Carbon | 0.01 max |
| Phosphorus | 0.02 max |
| Sulfur | 0.02 max |
Technical Composition
Physical Properties
| Property | Value |
|---|---|
| Density | 8.50 g/cm³ |
| Melting Point | 1350–1390°C (2462–2534°F) |
| Tensile Strength | 1,00,000 psi / 690 MPa |
| Yield Strength (0.2% Offset) | 43,500 psi / 300 MPa |
| Elongation | 45 % |
Mechanical Properties
| Property | Metric | Imperial |
|---|---|---|
| Tensile Strength (@ 538°C / 1000°F) | 690 MPa | 100,000 psi |
| Yield Strength (0.2% offset @ 427°C / 801°F) | 300 MPa | 43,500 psi |
| Elastic Modulus (RT) | 214 GPa | 31,000 ksi |
| Elongation at Break (@ 204°C / 399°F) | 45% | 45% |
| Hardness, Rockwell B (plate) | 90 | 90 |

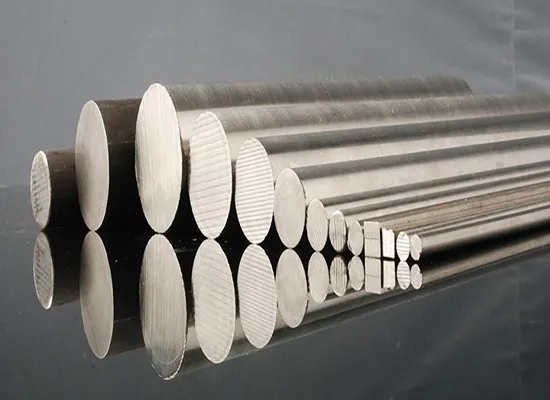

Products in Hastelloy C2000
MOKSH TUBES & FITTINGS LLP, we offer Hastelloy C-2000 in a variety of product forms:
We offer Hastelloy C2000 in a wide range of product forms, including:
Uses and Advantages
Excellent resistance to both oxidizing and reducing agents
Superior performance in sulfuric, nitric, and hydrochloric acid environments
High mechanical strength and metallurgical stability
Enhanced weldability compared to other C-grade alloys
Long-term corrosion resistance across mixed-acid applications
Applications of Hastelloy C2000
HASTELLOY C-2000 is a highly corrosion-resistant alloy designed to handle a wide range of aggressive environments — from strong oxidizers to reducing acids. Its unique blend of chromium, molybdenum, and copper provides outstanding versatility, making it ideal for critical operations across several industries.
Chemical Processing Industry
Widely used in reactors, heat exchangers, piping systems, evaporators, and storage tanks where mixed acid environments — including hydrochloric, sulfuric, and nitric acid — are present.
Pharmaceutical and Biotechnology
Perfect for systems requiring ultra-high corrosion resistance, hygiene, and regulatory compliance — such as process tanks, valves, and piping exposed to aggressive cleaning agents.
Pollution Control Equipment
Applied in scrubbers, stack liners, and other components exposed to acidic off-gases and corrosive condensates in air pollution control systems.
Food and Beverage Industry
Used in processing lines and vessels where both sanitation and resistance to acidic food products or cleaning chemicals are essential.
Pulp and Paper Industry
Reliable for bleaching plants, digesters, and chlorine dioxide systems where resistance to oxidizing and acidic chemicals is critical.
Mining and Metal Processing
Ideal for equipment exposed to acidic leaching solutions and aggressive slurry conditions in hydrometallurgical operations.
Wastewater Treatment
Trusted for handling highly corrosive effluents, chemical cleaning agents, and brine streams in industrial and municipal water treatment systems.
HASTELLOY C-2000's with its broad-spectrum corrosion resistance and excellent mechanical strength, HASTELLOY C-2000 delivers long-term performance in environments where other alloys simply can’t hold up.
WHY CHOOSE US?
FAQ's
What is Hastelloy C-2000 and why is it used in industries?
Hastelloy C-2000 (UNS N06200) is a nickel chromium molybdenum copper alloy developed to provide superior resistance to both oxidizing and reducing environments. The addition of copper enhances its performance in sulfuric acid, while chromium offers excellent resistance against oxidizing agents. This makes Hastelloy C-2000 a highly versatile material widely used in industries that require exceptional corrosion resistance and long term durability.
What are the key properties of Hastelloy C-2000?
Hastelloy C-2000 is known for its excellent resistance to mixed acid environments, including sulfuric, nitric, and hydrochloric acids. It has high mechanical strength, superior metallurgical stability, and improved weldability compared to other C-grade alloys. With a density of 8.50 g/cm³, melting point of 1350–1390°C, tensile strength of 100,000 psi, and elongation of 45%, this alloy maintains structural integrity even in highly aggressive and high temperature conditions.
In which industries is Hastelloy C-2000 most commonly used?
Hastelloy C-2000 is widely utilized in chemical processing, pharmaceutical and biotechnology, pollution control, pulp and paper, food and beverage, mining, wastewater treatment, and environmental protection industries. Its ability to perform well in the presence of strong acids, oxidizers, and corrosive effluents makes it a trusted choice for critical applications where conventional materials fail.
What types of Hastelloy C-2000 products are offered by MOKSH TUBES & FITTINGS LLP?
MOKSH TUBES & FITTINGS LLP supplies a comprehensive range of Hastelloy C-2000 products including seamless and welded pipes, tubes, sheets, plates, coils, bars, flanges, fittings, fasteners, wires, welding rods, and custom fabricated components. Each product is manufactured under strict quality control standards to ensure reliability, performance, and compliance with global specifications.
Why choose MOKSH TUBES & FITTINGS LLP for Hastelloy C-2000 materials?
MOKSH TUBES & FITTINGS LLP is a trusted manufacturer, exporter, importer, and stockist of high performance Hastelloy C-2000 products. With a strong vendor network, ISO certified manufacturing, precision machining, and global supply capabilities, the company ensures timely delivery and reliable solutions. Clients worldwide prefer MOKSH TUBES & FITTINGS LLP for their expertise in nickel alloys, exceptional service, and commitment to customer satisfaction.
Contact Us
Moksh Tubes & Fittings LLP today for expert assistance and a competitive quote. HASTELLOY C-2000 products.
