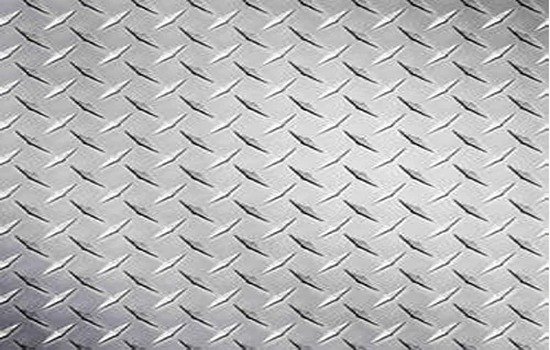

Chequered Sheets
Chequered Sheets (also known as tread plates or checker plates) are widely used in construction, transportation, architecture, and industrial flooring due to their anti-slip properties and durability. The sheets feature a raised, textured pattern — such as diamond, tear drop, or lentil designs — providing enhanced grip and safety in both wet and dry conditions.
Manufactured from a variety of materials including stainless steel, carbon steel, aluminum, and alloys, chequered sheets are valued for their high strength, corrosion resistance, and low maintenance requirements.
Moksh Tubes & Fittings LLP offers high-quality chequered sheets in multiple grades, finishes, and patterns that comply with global standards (ASTM, ASME, EN, IS). Our products are ideal for heavy-duty industrial applications as well as decorative and architectural uses.
Specifications
| Category | Details |
|---|---|
| Material | Stainless Steel, Carbon Steel, Mild Steel, Aluminum, Alloy Steel |
| Grades | ASTM/ASME certified – all mentioned materials available |
| Sheet Size | 1000 × 2000 mm, 1250 × 2500 mm, 1500 × 3000 mm (custom sizes available) |
| Wall Thickness | 1.5 mm to 12 mm (custom sizes on request) |
| Patterns | Diamond, Tear Drop, Lentil, Checker |
| Finishes | Mill Finish, Polished, Matte, Anodized (for aluminum) |
| Standards | ASTM A240, ASTM B209, IS 3502, EN 10088, JIS G4304 |
| Applications | Flooring, Walkways, Ramps, Stair Treads, Industrial Platforms |
Charts
Standard Thickness Range
| Material Type | Thickness (mm) | Thickness (inch) |
|---|---|---|
| Stainless Steel | 1.5 – 12 | 0.059 – 0.472 |
| Carbon / Mild Steel | 2 – 25 | 0.079 – 0.984 |
| Aluminium | 2 – 10 | 0.079 – 0.394 |
| Copper / Brass | 2 – 6 | 0.079 – 0.236 |
Size Charts
Standard Sheet Sizes
| Size (mm) | Size (inch) | Notes |
|---|---|---|
| 1000 × 2000 | 39 × 79 | Standard sheet |
| 1250 × 2500 | 49 × 98 | Heavy-duty applications |
| 1500 × 3000 | 59 × 118 | Structural use |
| 2000 × 4000 | 79 × 157 | Large flooring panels |
| Custom Sizes | — | Available on request |
Chequered Sheet Weight Chart
Mild Steel (Density 7.85 g/cm³)
| Thickness (mm) | 1000 × 2000 mm (kg) | 1200 × 2400 mm (kg) |
|---|---|---|
| 2 | 31.6 | 45.2 |
| 3 | 47.4 | 67.8 |
| 4 | 63.2 | 90.4 |
| 5 | 79.0 | 113.0 |
| 6 | 94.8 | 135.6 |
| 8 | 126.4 | 180.8 |
| 10 | 158.0 | 226.0 |
| 12 | 189.6 | 271.2 |
Stainless Steel (Density 8.0 g/cm³)
| Thickness (mm) | 1000 × 2000 mm (kg) | 1200 × 2400 mm (kg) |
|---|---|---|
| 1.5 | 23.5 | 33.6 |
| 2 | 31.4 | 44.8 |
| 3 | 47.1 | 67.2 |
| 4 | 62.8 | 89.6 |
| 5 | 78.5 | 112.0 |
| 6 | 94.2 | 134.4 |
| 8 | 125.6 | 179.2 |
| 10 | 157.0 | 224.0 |
Aluminum (Density 2.7 g/cm³)
| Thickness (mm) | 1000 × 2000 mm (kg) | 1200 × 2400 mm (kg) |
|---|---|---|
| 2 | 10.8 | 17.3 |
| 3 | 16.2 | 25.9 |
| 4 | 21.6 | 34.6 |
| 5 | 27.0 | 43.3 |
| 6 | 32.4 | 51.9 |
| 8 | 43.2 | 69.2 |
| 10 | 54.0 | 86.5 |
