Shim Sheets

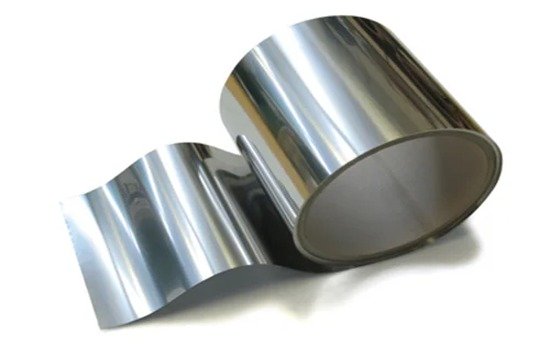

Shim Sheets are ultra-thin metal sheets used primarily for precision alignment, spacing, and leveling in industrial and engineering applications. They are manufactured in highly accurate thicknesses, typically ranging from 0.02 mm to 3 mm, to meet exact dimensional tolerances.
Shim sheets are essential in machine tool setups, automotive components, aerospace systems, and precision instruments, where even the smallest misalignment can cause performance issues.
Moksh Tubes & Fittings LLP supplies premium-quality shim sheets in a wide range of materials, thicknesses, and surface finishes, conforming to ASTM, ASME, DIN, EN, and JIS standards.
Specifications
| Category | Details |
|---|---|
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Brass, Copper, Aluminium, Nickel Alloys, Titanium |
| Grades | ASTM/ASME/EN/IS certified grades – all standard and custom alloys available |
| Thickness Range | 0.02 mm to 3 mm |
| Width | 150 mm to 1000 mm (custom widths on request) |
| Length | 500 mm to 2000 mm (or coil form) |
| Finishes | Cold Rolled, Mirror, Matte, 2B, BA, PVC Coated |
| Standards | ASTM A240, A666, JIS G4304, DIN EN 10151, IS 6911 |
| Types | Shim Sheets, Shim Coils, Pre-cut Shim Packs |
Charts
Shim Sheets – Weight Chart
| Thickness (mm) | MS (7.85) kg/m² | SS (7.93) kg/m² | Aluminium (2.70) kg/m² | Brass (8.40) kg/m² | Copper (8.94) kg/m² |
|---|---|---|---|---|---|
| 0.1 | 0.785 | 0.793 | 0.270 | 0.840 | 0.894 |
| 0.2 | 1.570 | 1.586 | 0.540 | 1.680 | 1.788 |
| 0.3 | 2.355 | 2.379 | 0.810 | 2.520 | 2.682 |
| 0.4 | 3.140 | 3.172 | 1.080 | 3.360 | 3.576 |
| 0.5 | 3.925 | 3.965 | 1.350 | 4.200 | 4.470 |
| 0.6 | 4.710 | 4.758 | 1.620 | 5.040 | 5.364 |
| 0.8 | 6.280 | 6.344 | 2.160 | 6.720 | 7.152 |
| 1.0 | 7.850 | 7.930 | 2.700 | 8.400 | 8.940 |
| 1.2 | 9.420 | 9.516 | 3.240 | 10.080 | 10.728 |
| 1.5 | 11.775 | 11.895 | 4.050 | 12.600 | 13.410 |
| 2.0 | 15.700 | 15.860 | 5.400 | 16.800 | 17.880 |
| 2.5 | 19.625 | 19.825 | 6.750 | 21.000 | 22.350 |
| 3.0 | 23.550 | 23.790 | 8.100 | 25.200 | 26.820 |
| 3.5 | 27.475 | 27.755 | 9.450 | 29.400 | 31.290 |
| 4.0 | 31.400 | 31.720 | 10.800 | 33.600 | 35.760 |
| 5.0 | 39.250 | 39.650 | 13.500 | 42.000 | 44.700 |
| 6.0 | 47.100 | 47.580 | 16.200 | 50.400 | 53.640 |
| 8.0 | 62.800 | 63.440 | 21.600 | 67.200 | 71.520 |
| 10.0 | 78.500 | 79.300 | 27.000 | 84.000 | 89.400 |
| 12.0 | 94.200 | 95.160 | 32.400 | 100.800 | 107.280 |
| 15.0 | 117.750 | 118.950 | 40.500 | 126.000 | 134.100 |
| 16.0 | 125.600 | 126.880 | 43.200 | 134.400 | 142.560 |
| 18.0 | 141.300 | 142.740 | 48.600 | 151.200 | 160.920 |
| 20.0 | 157.000 | 158.600 | 54.000 | 168.000 | 178.800 |
Grades Available
OurShim Sheets are offered in multiple grades to meet different industrial needs:
| Material | Grades |
|---|---|
| Stainless Steel Shims |
304, 304L, 316, 316L, 321
(Corrosion resistance & high strength) |
| Carbon & Mild Steel Shims |
ASTM A36, IS2062
(General engineering and tooling) |
| Alloy Steel Shims |
Aerospace & high-performance machinery grades
(Heavy-duty engineering) |
| Brass & Copper Shims |
Decorative, electrical, and heat-transfer applications
(Marine & decorative) |
| Aluminium Shims |
Lightweight and corrosion-resistant
(Automotive & aerospace) |
| Nickel & Titanium Shims |
Critical industries requiring extreme precision & resistance
(Specialty engineering) |
NICKLE ALLOYS
STAINLESS STEEL
DUPLEX & SUPER
TITANIUM ALLOYS
RARE TO ALLOYS
CARBON ALLOYS
Applications
Shim Sheets are widely used wherever precise spacing, alignment, or tolerance adjustment is required. Their thin, accurate thickness makes them indispensable for engineering, assembly, and maintenance operations.
Automotive Industry
- Engine Assemblies: Adjust clearances in engine blocks, cylinder heads, camshafts, and timing systems
- Gearbox & Transmission: Maintain accurate gear alignment and correct backlash
- Suspension & Chassis: Ensure proper spacing for bushings, mounts, and brackets
- Braking Systems: Fine-tuning brake calipers, rotors, and assemblies
- Prototyping & R&D: Testing new components in automotive design labs
Aerospace & Aviation
- Aircraft Engine Alignment: Precision spacing for turbines, compressors, and gearboxes
- Landing Gear Assemblies: Maintain proper alignment for safety-critical parts
- Airframe Construction: Correct minor dimensional discrepancies in fuselage and wing assembly
- Avionics & Instrumentation: Micro-adjustments in sensitive measuring systems
Industrial Machinery & Equipment
- Machine Tool Leveling: Leveling heavy machines such as lathes, CNC machines, milling equipment
- Presses & Stamping Dies: Maintain exact tolerances in punching, stamping, forming operations
- Turbines & Generators: Alignment during installation and maintenance of rotating equipment
- Maintenance & Repairs: Correct wear and tear by re-shimming rather than re-machining
Construction & Heavy Engineering
- Structural Adjustments: Correct alignment in structural joints, beams, and frameworks
- Equipment Installation: Level heavy machinery, pumps, compressors, foundations
- Bridges & Infrastructure: Provide shimming in bearings, plates, and expansion joints
Marine & Shipbuilding
- Engine Bed Alignment: Accurate placement of ship engines and propulsion systems
- Deck Machinery: Alignment for cranes, winches, and deck equipment
- Hull Assembly: Correct misalignments during hull and frame construction
Electrical & Electronics Industry
- Transformers & Motors: Maintain spacing in coils, cores, and laminations
- Precision Devices: Assembly of instruments, gauges, and measuring equipment
- Heat Management: Aluminum and copper shims for thermal conductivity and spacing
Tool & Die Industry
- Die Set Adjustments: Ensure correct tolerances in stamping, molding, forming dies
- Prototype Development: Testing and adjusting tool setups
- Maintenance Shims: Easy replacement to save downtime during tool refurbishment
General Industrial & Miscellaneous Uses
- Packaging & Printing Machines: Maintain precision in rollers and cutting mechanisms
- Medical Equipment: Devices and machines requiring exact tolerances
- R&D Labs & Universities: Experimental setups and testing environments
Uses of Shim Sheets
Shim Sheets are used extensively across multiple industries, including:
Precision Alignment
Ensures precise alignment of machinery and components
Spacing & Leveling
Used for spacing, leveling, and adjustment in mechanical setups
Wear Prevention
Prevents vibration and wear by maintaining correct tolerances
Reduced Downtime
Reduces downtime by enabling quick machine corrections
Custom Fit
Can be cut, folded, and formed to fit exact requirements
Advantages of Shim Sheets
Precision Thickness
Manufactured to extremely tight tolerances for accuracy
Material Variety
Available in stainless, brass, copper, aluminium, and more
Customizable
Can be cut to sheets, strips, or coil form
Corrosion & Heat Resistance
Especially with stainless, nickel, and titanium grades
Time-Saving for Maintenance
Easy to insert/remove for adjustments without re-machining
Cost-Effective
Avoids expensive repairs by fine-tuning existing setups
Frequently Asked Questions (FAQ) – Shim Sheets
What are Shim Sheets?
Shim sheets are thin sheets of metal used for precision adjustments, alignment, spacing, and support in machinery, assemblies, and industrial equipment. They help achieve accurate tolerances and reduce wear.
Which materials are shim sheets available in?
Shim sheets are available in a wide range of materials such as stainless steel, brass, copper, aluminum, carbon steel, nickel alloys, and specialty alloys depending on the application.
What thickness range is offered in shim sheets?
Shim sheets are generally available in thicknesses from 0.02 mm up to 5 mm, with closer tolerances for precision engineering applications. Custom thicknesses can also be made on request.
What are the common applications of shim sheets?
Common applications include:
- Machine alignment and leveling
- Tool & die set adjustments
- Motor and pump spacing
- Aerospace and automotive components
- Electronic equipment assembly
- Gasket and sealing purposes
Can shim sheets be supplied in cut sizes or rolls?
Yes, shim sheets are available in full sheets, coils/rolls, and precision cut-to-size pieces to meet project-specific requirements.
WHY CHOOSE US?
Contact Us
Looking for precision Shim Sheets for your engineering, automotive, or aerospace needs?
Contact Moksh Tubes & Fittings LLP
